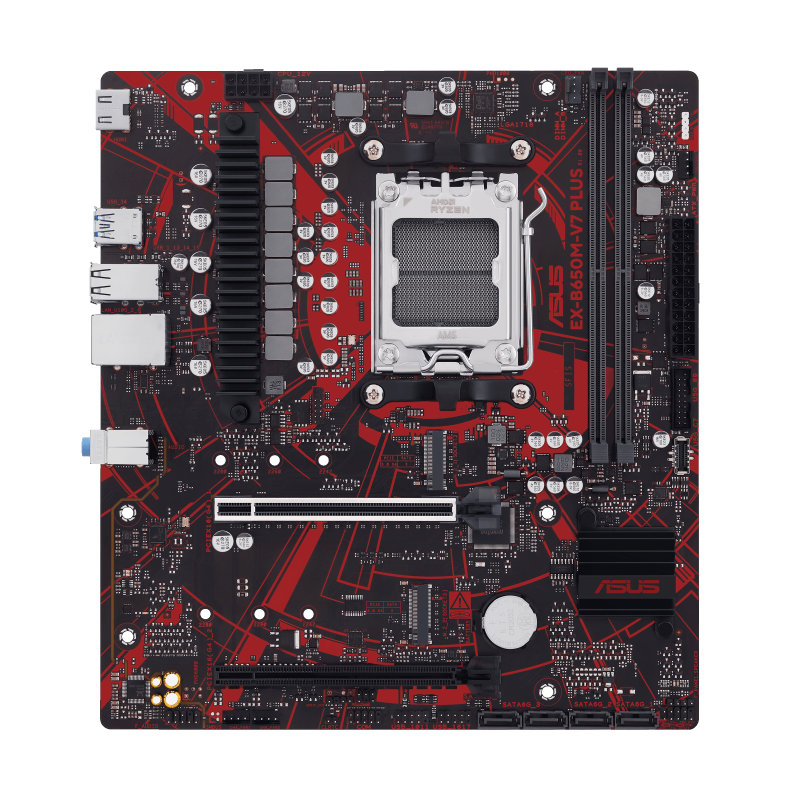

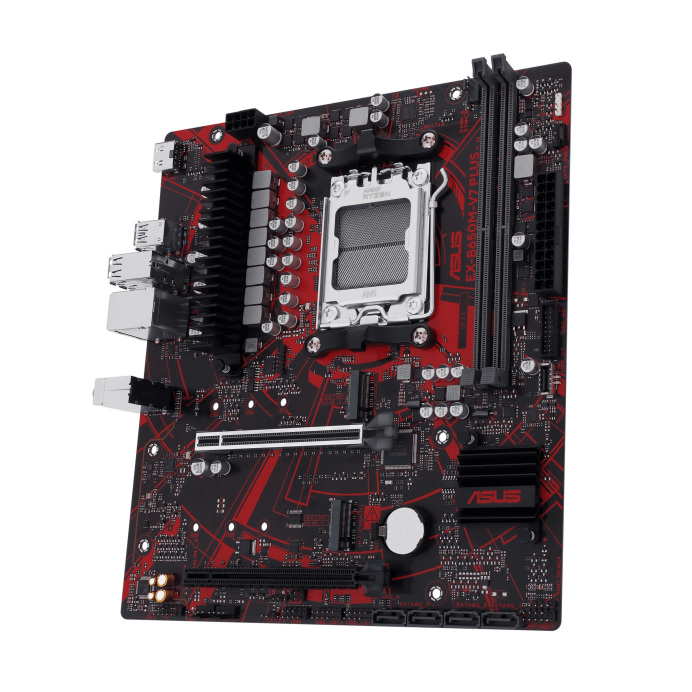

EX-B650M-V7 PLUS
AMD B650 micro-ATX motherboard with DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, HDMI™, SATA 6 Gbps, rear USB 10Gbps ports, front USB 5Gbps Type-C®, luminous anti-moisture coating and Lightning Boot
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Non-stop Action: The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses
- Non-stop Durability: Unbeatable features including luminous anti-moisture coating, LANGuard, SafeSlot Core+, USBGuard, Stainless-steel back I/O and 5X Protection III
- Non-stop Gaming: DDR5, PCIe 4.0 x16 slots, PCIe 5.0 M.2 slot, Realtek 2.5 Gb Ethernet, ASUS Beyond VR ready and Epic audio
- Non-stop Challenger: ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more
Compare
1
HDMI™
2
2 x USB 5Gbps
3
4 x USB 2.0
4
2 x USB 10Gbps
5
Realtek 2.5Gb Ethernet
6
3 x Audio Jacks
7
Expansion Slots
• 1 x PCIe 4.0 x16 SafeSlot Core+
• 1 x PCIe 4.0 x16 slot (max @x4)
• 1 x PCIe 4.0 x16 SafeSlot Core+
• 1 x PCIe 4.0 x16 slot (max @x4)
8
DDR5 support
• Dual Channel
• AEMP
• Dual Channel
• AEMP
9
AM5 Socket for AMD Ryzen™
Desktop Processors
Desktop Processors
10
1 x Front USB 5Gbps Type-A Header
11
1 x Front USB 5Gbps Type-C®
12
2 x M.2 slots
• M.2_1 2280 (PCIe 5.0 x4 mode)
• M.2_2 2280 (PCIe 4.0 x4 mode)
• M.2_1 2280 (PCIe 5.0 x4 mode)
• M.2_2 2280 (PCIe 4.0 x4 mode)
13
AMD B650 Chipset
14
4 x SATA 6Gb/s ports
15
2 x Front USB 2.0 Headers
BUILT FOR NON STOP ACTION
ASUS Expedition: Ready for non-stop battle
ASUS Expedition motherboards are made for non-stop action, featuring Lightning Boot for faster BIOS boot-up. These Expedition motherboards are engineered for long-lasting durability to protect against moisture, corrosion and overvoltage damage. They have been subjected to stringent 144-hour diskless-system tests and offer extensive compatibility with top games and over 100 gaming peripherals. Expedition motherboards include Epic gaming audio to complete the gaming experience and provide the best stability, reliability and performance.
NON STOP DURABILITY
Exceptional stability and protection
ASUS Expedition motherboards offer an exclusive package of unbeatable hardware and features to ensure non-stop durability, including a luminous anti-moisture coating, SafeSlot Core+, LANGuard, USBGuard protection for 120%-higher overvoltage toleration, and exclusive 5X Protection III for absolute reliability.
Luminous Anti-moisture Coating
Protects against moisture and corrosion
An innovative moisture-resistant coating provides comprehensive protection to prolong the life of your Expedition motherboard. It combats the negative effects of high humidity often found in crowded environments — such as iCafé , data centers and libraries — and minimizes internal corrosion by preventing the adhesion and migration of moisture. The coating even has a luminous effect when viewed under ultraviolet light, letting you clearly see where it is applied.
USBGuard
120% higher overvoltage protection
Exclusive USBGuard technology detects voltage changes in real time, and has 120%-higher overvoltage tolerances than standard to ensure stable and reliable input voltages — minimizing the risk of damage, and protecting your equipment.
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pad improve heat transfer from the MOSFETs for better cooling performance.
-
SafeSlot Core+
-
Surge-Protected Networking
-
Overvoltage Protection
-
Stable Power Supply
-
Stainless-Steel Back I/O
ASUS Expedition motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.
SAFESLOT CORE+
SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
Strengthened solder points around the PCIe pins.
Metal inserts keep graphics cards properly aligned during installation.
The metal side-panels feature hooks that firmly clasp the slot body.
LANGuard
Pumped-up throughput. 2.5X higher surge tolerance
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
-
Overvoltage ProtectionAn exclusive circuit design with built-in voltage regulators to protect your connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
-
DIGI+ Voltage-Regulator ModuleThe ASUS-exclusive Digi+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
-
Stainless-Steel Back I/OCorrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.
* Specifications and features may vary by model, and some images are illustrative. Please refer to Tech Specs and galleries for more details.
Acclaimed UEFI BIOS
ASUS Expedition motherboards include an improved slick mouse-controlled graphical BIOS and the new Lightning Boot feature that enables cloud PCs and diskless systems to boot up BIOS faster. The iCafe and Advanced modes help PC novices and seasoned overclockers get started quickly and easily.
Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
No CPU Detected
Fast blinking
4 Hz (0.25s)
No VGA Detected
Slow blinking
1/2 Hz (2s)
No Boot Device Detected
Very slow blinking
1/8 Hz (8s)
Installation Completed
Solid light
NON STOP GAMING
Superb DDR5 Performance
DDR5 Performance Enhancement
Comprehensive memory tuning options are the cornerstone of Expedition motherboards. With the EX-B650M-V7 PLUS, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.For those who want to fly past stock DDR5 speeds, the EX-B650M-V7 PLUS is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
For entry-level modules without EXPO™ memory support, we’ve got you covered. ASUS Enhanced Memory Profile(AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
ASUS OptiMem II
Revisions to the motherboard’s trace routing provide the latest processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.Benefits of ASUS OptiMem II:
- Improved memory stability and compatibility
- Allows lower memory latencies at equivalent voltages
- Improved memory frequency margin
Motherboards with OptiMem II technology were tested with Synopsys HSPICE simulation software
PCIe 5.0 M.2 Support
EX-B650M-V7 PLUS offers a total of two M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
PCIe 4.0 Slot
EX-B650M-V7 PLUS offers PCIe 4.0 slots connectivity for the GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
Realtek 2.5 Gb Ethernet
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Lower CPU workload
High TCP and UDP throughput
ASUS Beyond VR Ready
Perfect for iCafe Owners Wanting to Expand
Beat the competition by offering a VR experience in your iCafe with ASUS Beyond VR Ready. ASUS Expedition motherboards, plus the right mix of class-leading ASUS components, are the perfect solution for delivering the best VR experiences to your customers. ASUS Expedition motherboards passed the 3DMark VR test and further ASUS VR tests without any faults, so you can feel confident that you're offering the best performance and reliability.Expand your businesses appeal, and take your iCafe into the age of VR computing — with ASUS Beyond VR Ready!
Epic gaming audio
Discover a whole new dimension of superior audio and get ready to rule!
-
1
Audio shielding
Ensures precision analog/digital separation and greatly reduced multi-lateral interference. -
2
Separate layer for left and right tracks
Ensures both channels deliver consistent, equal quality. -
3
Premium audio capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
NON STOP CHALLENGER
144-hr diskless solution compatibility
ASUS operates the iCafé Labs to certify Expedition motherboards for use as diskless systems, subjecting them to 144 hours of dedicated tests, including a 24-hour reboot test and 12-hour 3D Mark test with heavy loading. A total of 1,200 validation hours ensure that Expedition motherboards are ready to run non-stop — with the smooth performance you demand.
Top games and 100+ peripherals tested
ASUS iCafé Labs engineers also subject Expedition boards to lengthy stability tests in an environment that simulates a real-world internet café. We test with the top games, and with over 100 of the most popular hardware combinations, so both you and your customers are assured of the very best gaming experiences!
-
144-HOURDISKLESS TEST
24-hour reboot and 12-hour 3D Mark tests to ensure the best internet and graphics performance.
-
TOP GAMESCOMPATIBILITY
Certified for best gaming experience.
-
100+GAMING PHERIPHELS
Certified for best gaming device compatibility.
-
1000+COMPATIBLE DEVICES
Including CPUs, memory modules, graphics cards and more.
-
DDR5COMPATIBILITY
More flexibility, more compatibility - support for DDR5.
-
7000+VALIDATION HOURS
Extensive testing for extreme reliability, compatibility and safety.
