PRIME Z790-V WIFI-CSM

PRIME Series provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

PRIME Z790-V WIFI-CSM

Z790-V WIFI-CSM

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14^th Gen Intel^® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-V WIFI-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

* CEC Tier II ready

14(50A)+1(60A)+1 power stages with enlarged VRM heatsinks
Gen 5 Slot for Graphics Card
AEMP II for Ultimate DDR5 Performance
USB 3.2 Gen 2x2 Type-C^® & Thunderbolt (USB4^®) Support
WiFi 5
Intelligent Control
Al Cooling II
Customization

All specs of the PRIME Z790-V WIFI-CSM motherboard

Intel^® Socket LGA1700 for Intel^® Core™ 14^th & 13^th Gen Processors, Intel^® Core™ 12 ^th Gen, Pentium^® Gold and Celeron^® Processors
Expansion Slots
• 1 x PCIe 5.0 x16 SafeSlot Core+
• 3 x PCIe 4.0 x16
• 1 x PCIe 3.0 x1
14(50A)+1(60A)+1 Power Stages
4 x DIMM
• DDR5
• Dual Channel
• AEMP II
• OptiMem II
3 x M.2 Slots
• 1 x M.2 22110 (PCIe 4.0 x4 mode)
• 1 x M.2 2280 (PCIe 4.0 x4 mode)
• 1 x M.2 22110 (PCIe 4.0 x4 & SATA modes)

VRM Heatsinks
CPU Fan Headers
AIO Pump Header
CHA Fan Header
Chipset Heatsink
CHA Fan Headers

1 x Aura RGB Header
1 x Addressable Gen 2 Header
2 x Addressable Gen 2 Headers

HDMI™
2 x USB 2.0 ports (Type-A)
2 x USB 3.2 Gen 1 ports (Type-A)
2 x USB 2.0 ports (Type-A)
Realtek 1Gb Ethernet
1 x USB 3.2 Gen 2x2 Type-C^®
1 x USB 3.2 Gen 2 port (Type-A)
3 x Audio Jacks

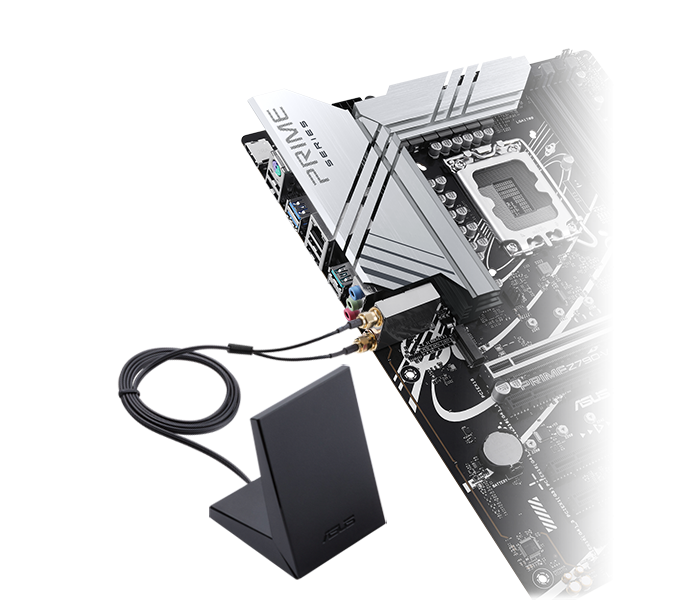

Wi-Fi 5
1 x USB 3.2 Gen 1 Header
1 x USB 3.2 Gen 1 Type-C^® Connector
Thunderbolt™ (USB4^®) Header
2 x USB 2.0 Headers
1 x USB 3.2 Gen 1 Header
4 x SATA 6Gb/s

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.

Learn more about ASUS CSM program

ASUS Control
Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Learn more about ASUS Control Center Express

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-V WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search Function

Quickly and easily find the option or setting you need.

ASUS User Profile

Port configuration settings between different BIOS versions or share them with friends.

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Intuitive Graphical Fan Control

Fine-tune individual fan settings simply by dragging a curve with the mouse.

Aura On/Off Mode (Stealth)

Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

COOLING

PRIME Z790-V WIFI-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks

VRM Heatsinks and Thermal Pads

The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

Prime motherboard with VRM heatsinks image

Cooler by Design

PRIME Z790-V WIFI-CSM features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.

Prime motherboard with multiple temperature sources image

Prime motherboard with 4-Pin PWM Fan image

Prime motherboard with 4-Pin PWM/DC Fan image

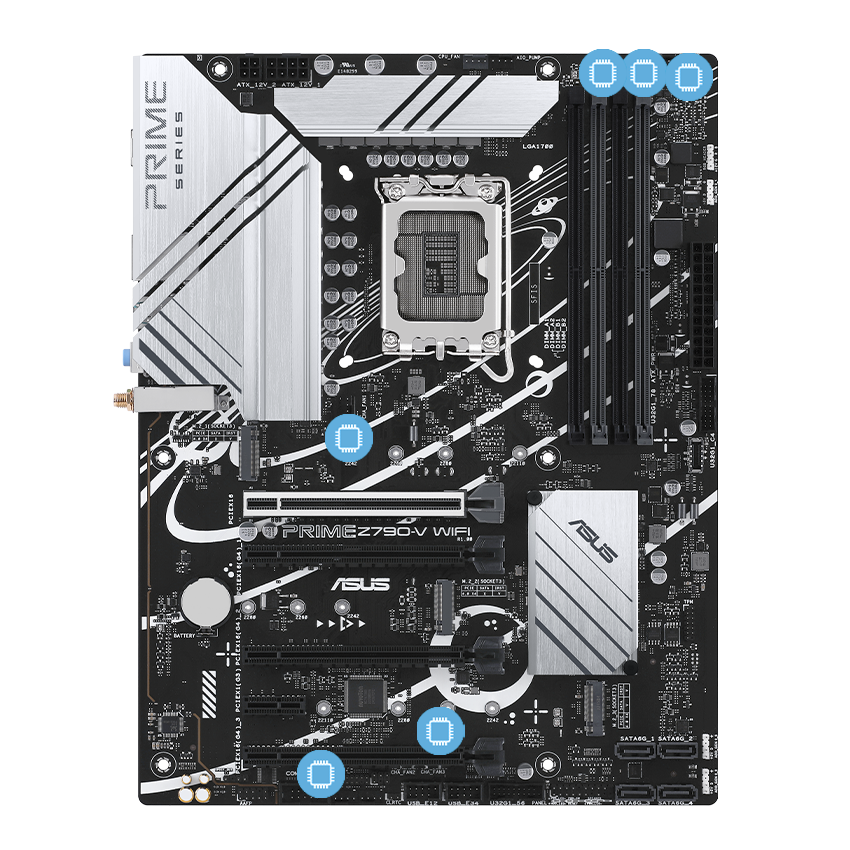

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

AIO Pump Header

A dedicated PWM/DC header for self-contained water-cooling setups.

Smart Protection

A dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-Pin PWM/DC Fan

Each onboard header supports auto-detection of PWM or DC fans.

PERFORMANCE

The PRIME Z790-V WIFI-CSM motherboard is built to handle the high core counts and bandwidth demands of 14^th, 13^th and 12^th Gen Intel^® Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel^® processors. The PRIME Z790-V WIFI-CSM is geared to cater to the demands of these high-core-count CPUs.

ProCool Connectors

Proprietary connectors augment the motherboard's link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

Memory

ASUS OptiMem

Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

ASUS OptiMem benefits:

Improved memory stability and compatibility
Allows lower memory latencies at equivalent voltages
Improved memory frequency margin

Motherboards with OptiMem technology were tested with Synopsys HSPICE simulation software

DDR4 Support

Improvements to trace routing design provide the latest Intel^® processors with enhanced access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

ASUS OptiMem II

Revisions to the motherboard’s trace routing provide the latest processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Benefits of ASUS OptiMem II:

Improved memory stability and compatibility
Allows lower memory latencies at equivalent voltages
Improved memory frequency margin

*Motherboards with OptiMem II technology were tested with Synopsys HSPICE simulation software

AEMP II for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.

Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.

*Results may vary according to the capabilities of your CPU and memory modules.
**The comparison chart is based on a test with an Intel^® i9-13900K processor and 2x16 GB SK Hynix DDR5-4800 non-ECC UDIMMs, model HMCG78MEBUA081N.
***Please ensure all memory modules are from a single validated kit. Do not combine DIMMs from multiple kits—even if they are the same make and model. Mixing and matching DIMMs can result in failure to boot, and compatibility cannot be guaranteed.
****Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with your retailer to get the correct memory modules.

Up to 37.5%
6600(OC) AEMP II
4800 DDR5 Baseband

The PRIME Z790-V WIFI-CSM motherboard supports DDR5.

Connectivity

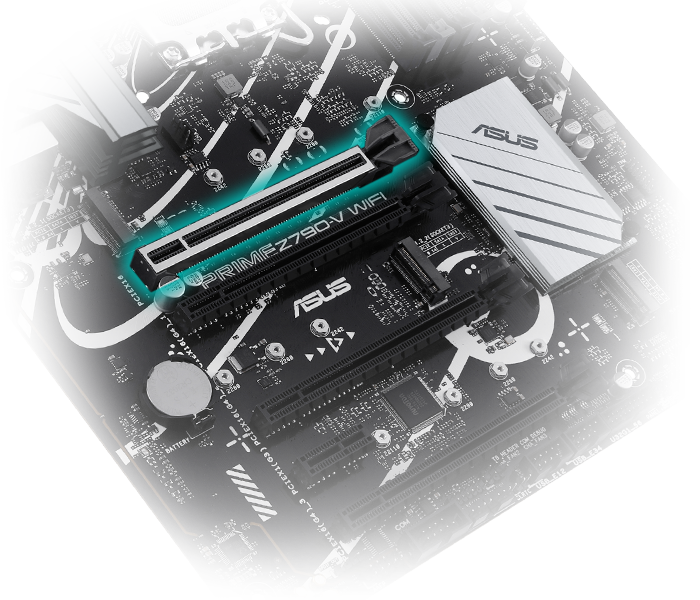

PCIe^® 5.0 slot

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express.

CUSTOMIZATION

The PRIME Z790-V WIFI-CSM motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio

TWO-WAY AI NOISE CANCELATION

This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls.

*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.

500M

Deep-learning database

Audio

Input/output

High

Fidelity

Minimal

Performance Impact

Hear the Difference

Background noise

Other human voice

Human speech

Realtek Codec and Unique Design Features for Pristine, Powerful Audio

The unique S1220A audio codec designed in close collaboration with Realtek provides pristine audio quality via an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in. An impedance-sensing circuit also adjusts gain for optimal headphone volume.

DTS:X^® Ultra adds a spatial audio feature to boost headphones and speakers for enhanced gaming, VR and extended-reality experiences. DTS:X Ultra supports sound based on channels, scenes, and objects to allow for deeper sonic immersion in enabled content. It also provides post-processing enhancements and device-level tuning for DTS^® codecs.

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding

Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.

Dedicated Audio PCB Layers

Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

Premium Audio Capacitors

Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

Outstanding Audio

TWO-WAY AI NOISE CANCELATION

*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.

500M

Deep-learning database

Audio

Input/output

High

Fidelity

Minimal

Performance Impact

Hear the Difference

Background noise

Other human voice

Human speech

Realtek Codec and Unique Design Features for Pristine, Powerful Audio

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding

Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.

Dedicated Audio PCB Layers

Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

Premium Audio Capacitors

Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

LED-illuminated control for trace paths

Built-in LED lighting options illuminate your build in a variety of eye-catching styles.

Personalization

Aura Sync

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Learn More

Static

Breathing

Strobing

Rainbow

Color Cycle

Starry Night

Music Effect

Smart

Dark

Adaptive Color

Addressable Gen 2 Header

Three Addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

TWO-WAY AI NOISE CANCELATION

This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls.

500M

Deep-learning database

Audio

Input/output

High

Fidelity

Minimal

Performance Impact

Hear the Difference

Armoury Crate

Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal , plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.
DOWNLOAD NOW

DIY Friendly

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

No DRAM Detected

Fast blinking

4 Hz (0.25s)

No VGA Detected

Slow blinking

1/2 Hz (2s)

No Boot Device Detected

Very slow blinking

1/8 Hz (8s)

Installation Completed

Solid light

Overvoltage Protection

World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

Stainless-Steel Back I/O

3X corrosion-resistance for greater durability

Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Learn more

1000+
Compatible devices and components

Prime 700 series provides superior compatibility with thousands of components and our memory support list identifies memory compatibility, giving you more choices for worry-free PC-building experiences.

8000+
Validation hours

Every ASUS motherboard is subjected to more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

Temperature and humidity tests

Ensures components withstand extreme conditions.

Thermal measurement tests

Ensures that the system remains cool and stable under the heaviest loads.

Insertion tests

Every port and connector is put through repeated installation cycles.

Aging tests

Up to 48-hour aging test ensures reliability.

Power-consumption tests

Checked for world-class energy efficiency.

Temperature and DC margin tests

Ensures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.

Thermal-shock tests

Ensures ability to survive temperature changes during transportation.

Non-operation shock tests

Built to withstand jolts that may occur during shipping.

Burn-in tests

Every component is checked to ensure flawless operation.

Installation tests

Connector placement is double-checked to ensure hassle-free installation.

Drop tests

Drop tests from various heights ensure durability.

Salt and spray tests

Tested for I/O reliability, prolonged lifespan and rust-resistance.

LANGuard

Pumped-up throughput 2.5X higher surge tolerance

ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

Overvoltage Protection

World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection

Short-circuit damage prevention

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O

3X corrosion-resistance for greater durability

Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Learn more

1000+
Compatible devices and components

The Prime H670 series provides superior compatibility with thousands of components and our memory support list identifies memory compatibility, giving you more choices for worry-free PC-building experiences.

8000+
Validation hours

Temperature and humidity tests

Ensures components withstand extreme conditions.

Thermal measurement tests

Ensures that the system remains cool and stable under the heaviest loads.

Insertion tests

Every port and connector is put through repeated installation cycles.

Aging tests

Up to 48-hour aging test ensures reliability.

Power-consumption tests

Checked for world-class energy efficiency.

Temperature and DC margin tests

Ensures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.

Thermal-shock tests

Ensures ability to survive temperature changes during transportation.

Non-operation shock tests

Built to withstand jolts that may occur during shipping.

Burn-in tests

Every component is checked to ensure flawless operation.

Installation tests

Connector placement is double-checked to ensure hassle-free installation.

Drop tests

Drop tests from various heights ensure durability.

Salt and spray tests

Tested for I/O reliability, prolonged lifespan and rust-resistance.

Scroll down

Timeline Backup
Auto Backup for Your Computer!

ASUS user’s special offer.｜Buy 1TB get 200GB free.

73% OFF

Exclusive AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

Recommend for you

PRIME Z790-P WIFI-CSM

Intel Z790 (LGA 1700) ATX motherboard, Advanced AI PC ready, three M.2 slots, 14+1 DrMOS, DDR5, Intel WIFI 6, Realtek 2.5 Gb LAN, HDMI^®, DP, USB 3.2 Gen 2x2 Type-C^®, front USB 3.2 Gen 2 Type-C^®, Thunderbolt^™ (USB4^®) support, Aura Sync

Learn more

PRIME Z790-P WIFI D4-CSM

Intel Z790 (LGA 1700) ATX motherboard, Advanced AI PC ready, three M.2 slots, 14+1 DrMOS, DDR4, Realtek 2.5Gb Ethernet, Intel^® Wi-Fi 6, HDMI^®, DP, USB 3.2 Gen 2x2 Type-C^®, front USB 3.2 Gen 2 Type-C^®, Thunderbolt™ (USB4^®) support, Aura Sync

Learn more

PRIME Z790-P-CSM

Intel Z790 (LGA 1700) ATX motherboard, Advanced AI PC ready, three M.2 slots, 14+1 DrMOS, DDR5, Realtek 2.5 Gb LAN, HDMI^®, DP, USB 3.2 Gen 2x2 Type-C^®, front USB 3.2 Gen 2 Type-C^®, Thunderbolt^™ (USB4^®) support, Aura Sync

Learn more

PRIME Z790-P D4-CSM

Intel Z790 (LGA 1700) ATX motherboard, Advanced AI PC ready, three M.2 slots, 14+1 DrMOS, DDR4, Realtek 2.5Gb Ethernet, HDMI^®, DP, USB 3.2 Gen 2x2 Type-C^®, front USB 3.2 Gen 2 Type-C^®, Thunderbolt™ (USB4^®) support, Aura Sync

Learn more

NEW

Z790-AYW WIFI W-CSM

Intel^® Z790 LGA 1700 ATX motherboard, Advanced AI PC ready, PCIe 4.0, three PCIe 4.0 M.2 slots, DDR5, memory speed 8000+(OC), Realtek 2.5Gb Ethernet, WiFi 6, HDMI™, SATA 6 Gbps, USB 10Gbps Type-C^®, Two-way AI Noise Cancelation, Power Saving, BIOS FlashBack button, Aura Sync

Learn more

PRIME Z790-V AX-CSM

Intel Z790 (LGA 1700) ATX motherboard, Advanced AI PC ready, three M.2 slots, 14+1 DrMOS, DDR5, WIFI 6, HDMI™, USB 3.2 Gen 2x2 Type-C^®, front USB 3.2 Gen 1 Type-C^®, Thunderbolt™ (USB4^®) support, Aura Sync

Learn more

PRIME Z790-V AX

Learn more

PRIME Z790-V WIFI

Intel Z790 (LGA 1700) ATX motherboard, Advanced AI PC ready, three M.2 slots, 14+1 DrMOS, DDR5, WIFI 5, HDMI™, USB 3.2 Gen 2x2 Type-C^®, front USB 3.2 Gen 1 Type-C^®, Thunderbolt™ (USB4^®) support, Aura Sync

Learn more

PRIME H770-PLUS-CSM

Intel^® H770 (LGA 1700) ATX motherboard, Advanced AI PC ready, PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, USB 3.2 Gen 2 Type-C^®, Thunderbolt™ (USB4^®) support, Two-Way AI Noise Cancelation, Aura Sync

Learn more

PRIME B760M-K D4-CSM

Intel^® B760 (LGA 1700) mATX motherboard, Advanced AI PC ready, PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, VGA, HDMI^®, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync

Learn more

PRIME B650-PLUS-CSM

ASUS PRIME B650-PLUS-CSM AMD B650 (Ryzen AM5) ATX motherboard, Advanced AI PC ready, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, DisplayPort, HDMI^®, SATA 6 Gbps, USB 3.2 Gen 2 Type-C^®, front USB 3.2 Gen 1 Type-C^®, BIOS FlashBack™, USB4^® Support and Aura Sync.

Learn more

PRIME Z790-A WIFI-CSM

ASUS Prime Z790-A WIFI-CSM, an Intel Z790 LGA 1700 ATX motherboard, Advanced AI PC ready, four M.2 slots, 16+1 DrMOS, DDR5, Intel WIFI 6E, 2.5 Gb LAN, HDMI^®, DP, USB 3.2 Gen 2x2 Type-C^®, front USB 3.2 Gen 2 Type-C^®, Thunderbolt™ (USB4^®) support

Learn more
