Name: PRIME B650M-F-CSM
Brand: ASUS
SKU: 29643

AMD B650 micro-ATX motherboard, DDR5, PCIe 4.0 support, M.2 slot, Realtek 1Gb Ethernet, HDMI™, USB 5Gbps Type-A, SATA 6 Gbps, BIOS FlashBack™, Two-Way AI Noise Cancelation, Aura Sync

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors
Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet and USB 5Gbps support
Comprehensive Cooling: PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection

Compare

Prime series motherboard provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

B650M-F-CSM

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series/ 8000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-F-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

Gen 4 Slot for Storage
DDR5 Support
1Gb Ethernet
Intelligent Control
Al Noise Cancelation
Customization

All specs of the Prime series motherboar

HDMI™
BIOS FlashBack™ button
USB 5Gbps
USB 2.0
1Gb Ethernet
Audio
Expansion slots
• 1 x PCIe 4.0 x16 SafeSlot Core
• 1 x PCIe 4.0 x1
Audio Features
• Premium audio capacitors
• Audio Shielding
• Dedicated audio PCB layers
1 x Addressable Gen 2 header
2 x Addressable Gen 2 headers
2 x DDR5 DIMM slots
AM5 Socket for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors
• Supports up to AMD 120W CPU
1 x Front USB 5Gbps header

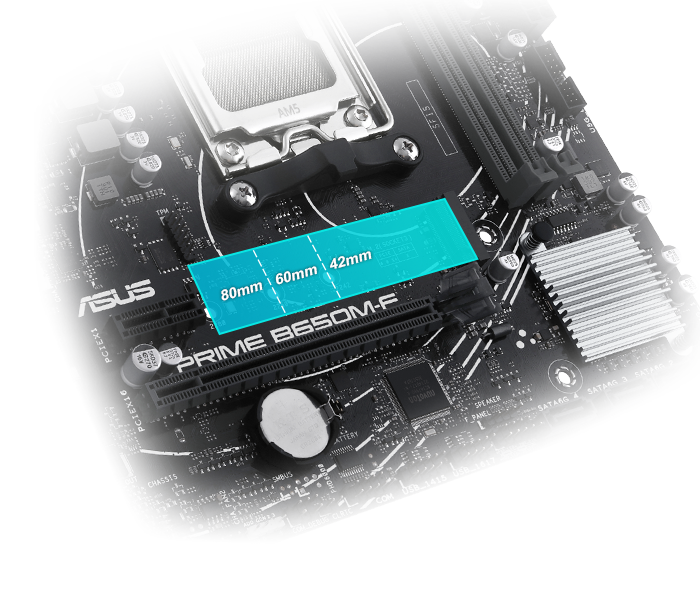

1 x M.2 2280 (PCIe 4.0 x4 mode)
AMD B650 Chipset
4 x SATA 6Gb/s
2 x Front USB 2.0 headers

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.

Learn more about ASUS CSM program

ASUS Control
Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Learn more about ASUS Control Center Express

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

CPU Performance Boost

AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search Function

Quickly and easily find the option or setting you need.

ASUS User Profile

Port configuration settings between different BIOS versions or share them with friends.

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Intuitive Graphical Fan Control

Fine-tune individual fan settings simply by dragging a curve with the mouse.

Aura On/Off Mode (Stealth)

Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

COOLING

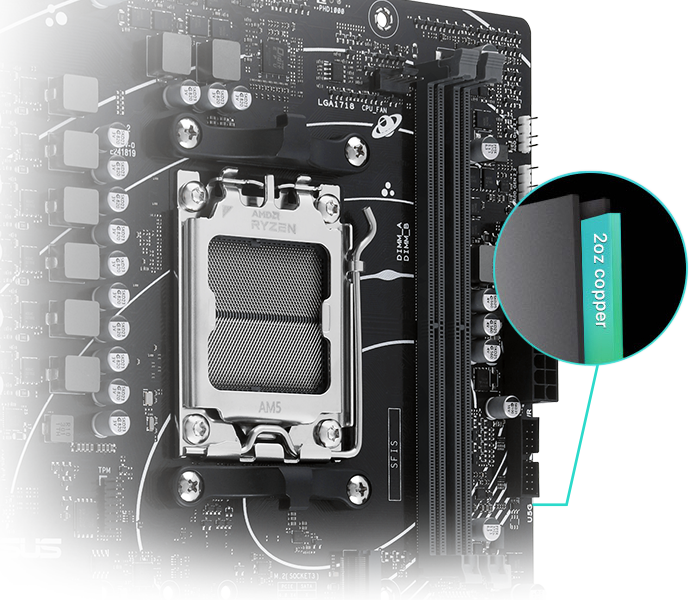

PRIME B650M-F-CSM is engineered with an array of hybrid fan headers and two ounce copper PCB design to ensure your rig stays cool and stable under intense workloads.

Cooler by Design

Prime B650 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Prime motherboard with multiple temperature sources image

Prime motherboard with smart protection image

Prime motherboard with 4-Pin PWM/DC Fan image

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Smart Protection

A dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-Pin PWM/DC Fan

Each onboard header supports auto-detection of PWM or DC fans.

PERFORMANCE

The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Memory

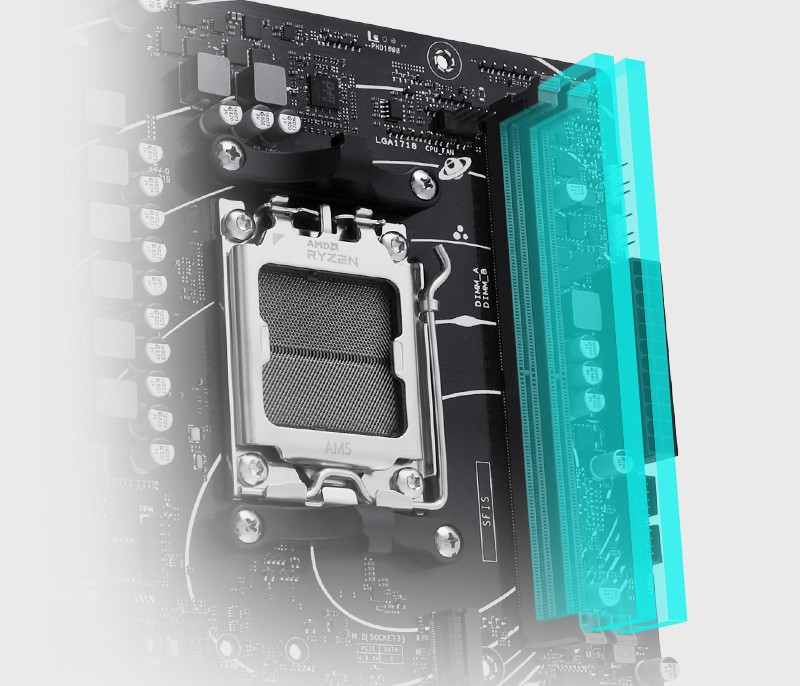

DDR5 Performance Enhancement

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650M-F-CSM, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

For entry-level modules without EXPO™ memory support, we’ve got you covered. Click here to learn more about AEMP. .

For those who want to fly past stock DDR5 speeds, the PRIME B650M-F-CSM is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

Connectivity

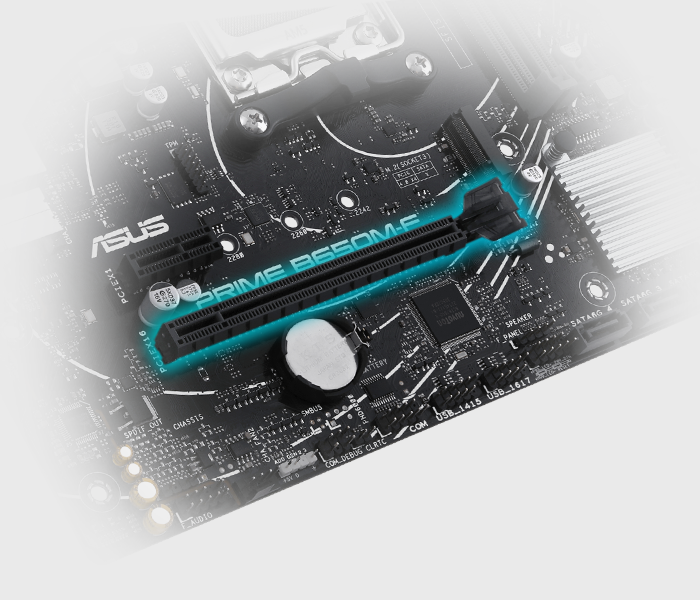

PCIe 4.0 Slot

Prime B650 motherboards offer PCIe 4.0 slot connectivity for the GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

CUSTOMIZATION

The PRIME B650 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding

Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.

Dedicated Audio PCB Layers

Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

Premium Audio Capacitors

Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

Personalization

Aura Sync

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Learn More

Static

Breathing

Strobing

Rainbow

Color Cycle

Starry Night

Music Effect

Smart

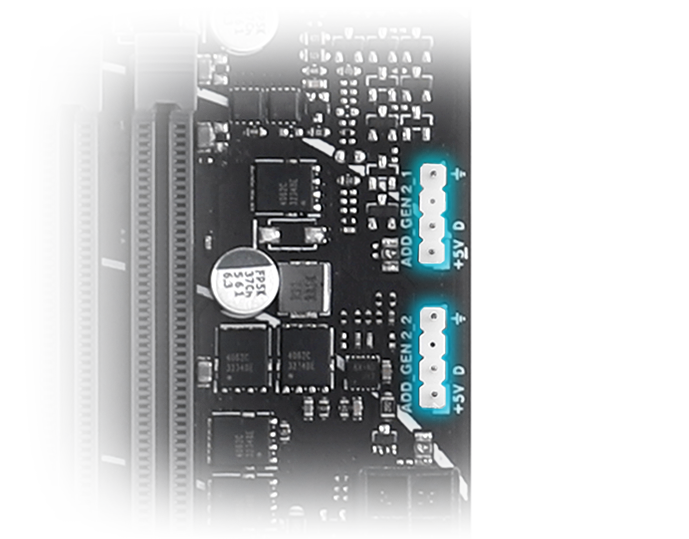

Addressable Gen 2 Headers

The addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

TWO-WAY AI NOISE CANCELATION

This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls.

500M

Deep-learning database

Audio

Input/output

High

Fidelity

Minimal

Performance Impact

Hear the Difference

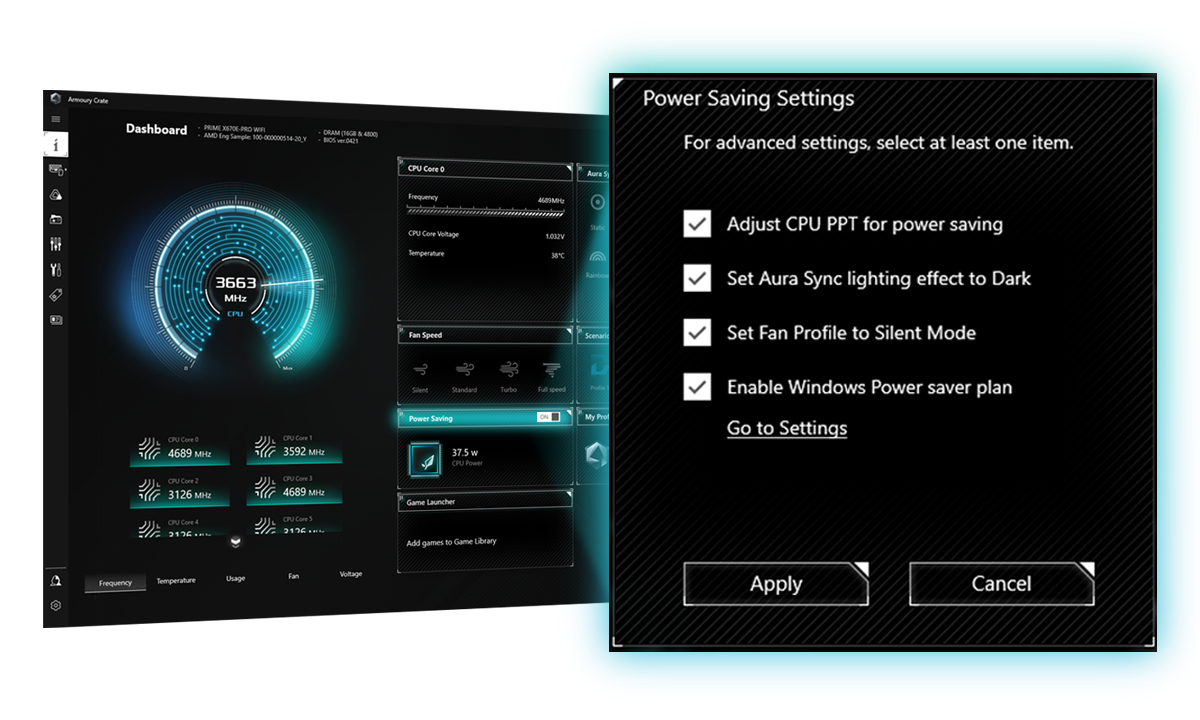

Armoury Crate

Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal, plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.
DOWNLOAD NOW

DIY Friendly

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

No CPU Detected

This motherboard motherboard features Q-LED Core.

Fast blinking

4 Hz (0.25s)

No VGA Detected

Slow blinking

1/2 Hz (2s)

No Boot Device Detected

Very slow blinking

1/8 Hz (8s)

Installation Completed

Solid light

Overvoltage Protection

World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

Stainless-Steel Back I/O

3X corrosion-resistance for greater durability

Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Learn more

1000+
Compatible devices and components

The Prime B650 series provides superior compatibility with thousands of components and our memory support list identifies memory compatibility, giving you more choices for worry-free PC-building experiences.

8000+
Validation hours

Every ASUS motherboard is subjected to more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

Temperature and humidity tests

Ensures components withstand extreme conditions.

Thermal measurement tests

Ensures that the system remains cool and stable under the heaviest loads.

Insertion tests

Every port and connector is put through repeated installation cycles.

Aging tests

Up to 48-hour aging test ensures reliability.

Power-consumption tests

Checked for world-class energy efficiency.

Temperature and DC margin tests

Ensures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.

Thermal-shock tests

Ensures ability to survive temperature changes during transportation.

Non-operation shock tests

Built to withstand jolts that may occur during shipping.

Burn-in tests

Every component is checked to ensure flawless operation.

Installation tests

Connector placement is double-checked to ensure hassle-free installation.

Drop tests

Drop tests from various heights ensure durability.

Salt and spray tests

Tested for I/O reliability, prolonged lifespan and rust-resistance.

Scroll down

THIS CHANGES EVERYTHING.

FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE

Build your next rig with an AMD Ryzen™ 7000 Series processor and PRIME B650M-F-CSM to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.¹

You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe^® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.²

Max boost for AMD Ryzen processors is the maximum frequency achievable by a single core on the processor running a bursty single-threaded workload. Max boost will vary based on several factors, including, but not limited to: thermal paste; system cooling; motherboard design and BIOS; the latest AMD chipset driver; and the latest OS updates. GD-150
Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by the system manufacturer or retailer. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability. GD-106

Timeline Backup

Auto Backup for Your Computer!

ASUS user’s special offer.｜Buy 1TB get 200GB free.

Exclusive AEMP

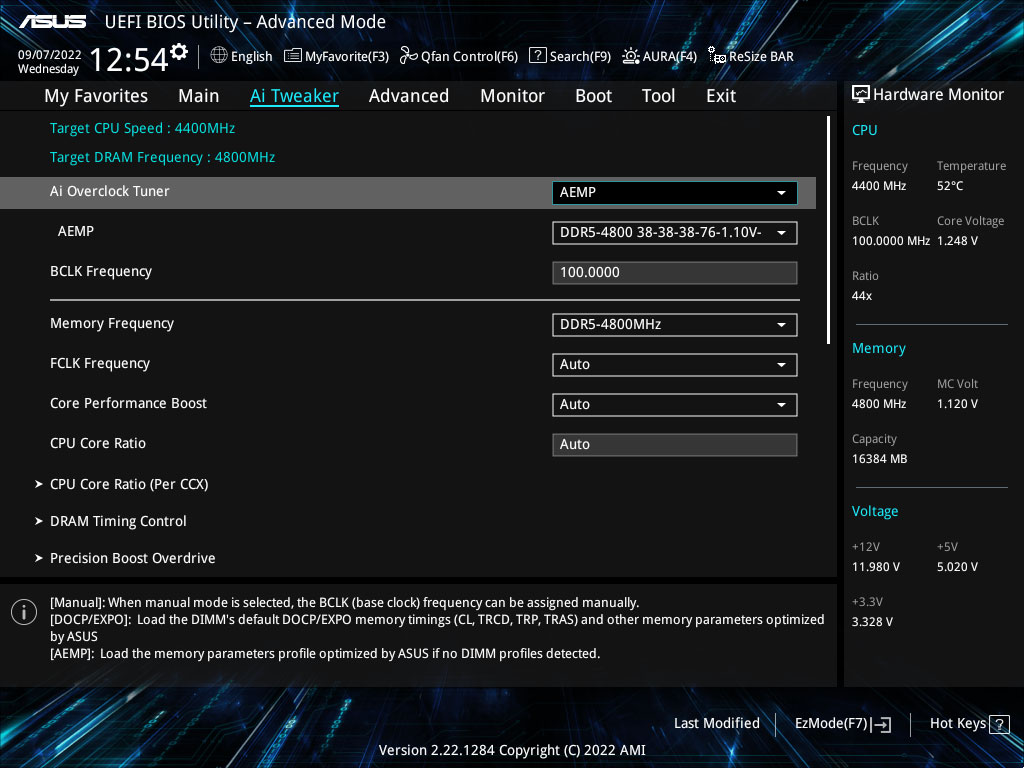

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
