B760M-AYW PRO WIFI-CSM

ASUS B760M-AYW PRO WIFI-CSM, an Intel B760 (LGA 1700) mATX motherboard with PCIe® 4.0, two M.2 slots, DDR5, WIFI 6, Realtek 2.5Gb Ethernet, DP & HDMI™, rear USB 10Gbps, front USB Type-C®, Aura Sync
  • Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
  • Next-gen connectivity: DDR5 memory, Wi-Fi 6, PCIe® 4.0, rear USB 10Gbps, front panel USB Type-C®, two PCIe® 4.0 M.2
  • Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares
  • ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Ready For Advanced AI PC
B760M-AYW PRO WIFI-CSM
kv_background_light kv_background_light kv_background_dark B760 Series provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

B760M-AYW PRO WIFI-CSM



ASUS B760 series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, B760M-AYW PRO WIFI-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.


icon-intel, Advanced AI PC ready's icon
All specs of the B760M-AYW PRO WIFI-CSM motherboard All specs of the B760M-AYW PRO WIFI-CSM motherboard
  • 1 x HDMI
  • 1 x DisplayPort
  • 4 x USB 5Gbps ports
  • 2 x USB 2.0 ports (Type-A)
  • Realtek 2.5Gb Ethernet
  • 2 x USB 10Gbps ports (Type-A)
  • Wi-Fi 6
  • 3 x Audio Jacks
  • Expansion Slots
    • 1 x PCIe 4.0 x16 slot
    • 1 x PCIe 4.0 x1 slot
  • 3 x Addressable Gen 2 headers
  • DDR5 support
    • Dual Channel
  • Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
  • 1 x USB Type-C
  • 2 x M.2 slots
    • M.2_1 slot (Key M) 2280 (PCIe 4.0 x4 mode)
    • M.2_2 slot (Key M) 2280 (PCIe 4.0 x4 mode)
  • 2 x SATA 6Gb/s ports

ASUS Corporate Stable Model



ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.


* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.


Learn more about ASUS CSM program
decoration_arrow

ASUS Control
Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.


Learn more about ASUS Control Center Express
decoration_arrow

Optimize IT endpoint management


Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely


Automate IT maintenance


Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility


Securely manage all of endpoints


Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

FLEXIBILITY



Comprehensive controls form the foundation of the ASUS B760 series. The B760M-AYW PRO WIFI-CSM motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
background_decoration background_decoration

Intelligent Control



ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

background_decoration background_decoration
UI of Power Saving settings UI of Fan Xpert 2+ for cooling controls Digi+ VRM feature icon

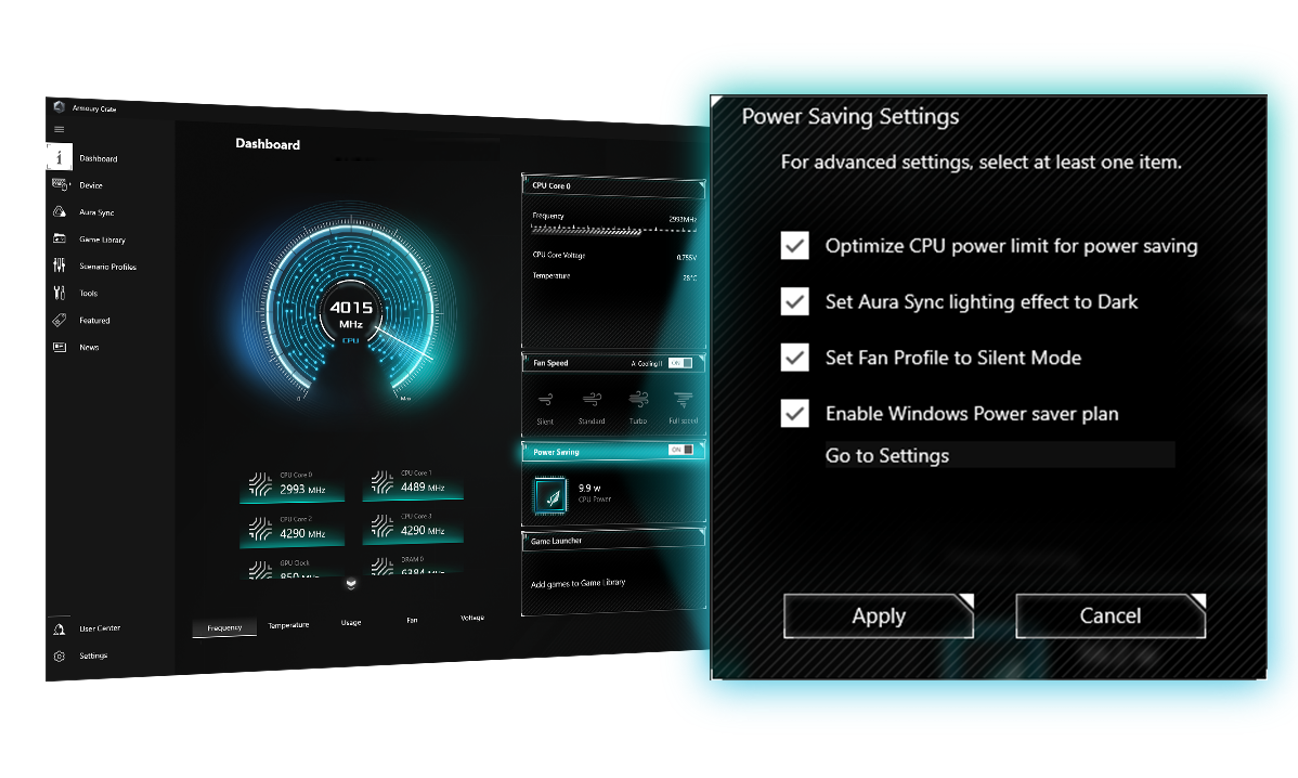

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Flexible Air-Cooling Controls

ASUS Fan Xpert 2+ software provides comprehensive control over fan. There’s an Extreme Quiet mode that reduces fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fan can also be controlled via the UEFI BIOS.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS



The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
background_decoration

Advanced Tuning for Serious Tweakers



An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search Function


Quickly and easily find the option or setting you need.

ASUS User Profile


Port configuration settings between different BIOS versions or share them with friends.

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Intuitive Graphical Fan Control


Fine-tune individual fan settings simply by dragging a curve with the mouse.

Aura On/Off Mode (Stealth)


Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

COOLING


B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks



M.2 Heatsink



M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.
Offers M.2 heatsink

VRM Heatsinks and Thermal Pad



VRM heatsinks and thermal pad improve heat transfer from the MOSFETs and chocks for better cooling performance.
B760 motherboard with VRM heatsinks image
background decoration background decoration

Cooler by Design



B760 series features comprehensive cooling controls that are configurable via FAN Xpert 2+ software or via the UEFI BIOS.
B760 motherboard with multiple temperature sources image B760 motherboard with 4-Pin PWM/DC Fan image

Multiple Temperature Sources



Each header can dynamically reference three thermal sensors. FAN Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

4-Pin PWM/DC Fan



All onboard chassis fan headers support auto-detection of PWM or DC fans.

PERFORMANCE



The B760 series are built to handle the high core counts and bandwidth demands of 14th, 13th and 12th Gen Intel® Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design



Stable power is essential to extract every last bit of performance out of Intel® processors. The B760M-AYW PRO WIFI-CSM is geared to cater to the demands of these high-core-count CPUs.
background_decoration
ProCool-Connectors icon

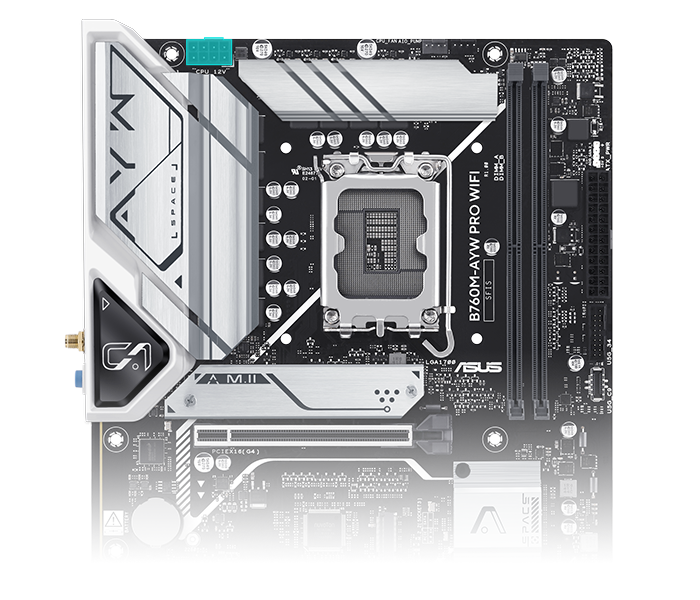

ProCool Connector

Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
Features ProCool Connector
Features ProCool Connector

Memory

The B760M-AYW PRO WIFI-CSM comes along with ASUS Enhanced Memory Profile II (AEMP II) to train your memory kit and optimize clock speed to unleash DDR5 performance. Bar chart intro AEMP II profiles that offer up to 37.5% faster RAM speeds than baseline DDR5 specs.

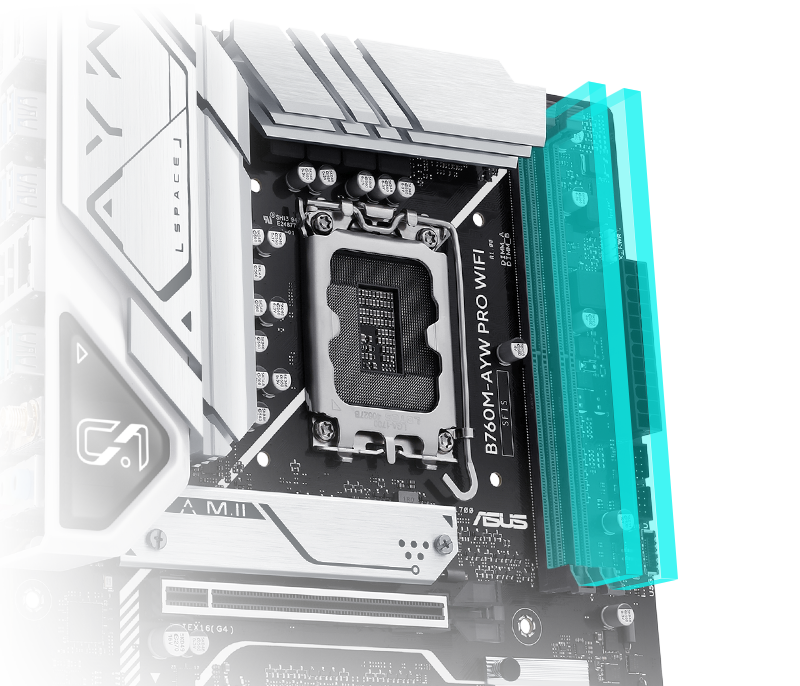

AEMP II for Ultimate DDR5 Performance


ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.

Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.

*Results may vary according to the capabilities of your CPU and memory modules.

**The comparison chart is based on a test with an Intel® i9-13900K processor and 2x16 GB SK Hynix DDR5-4800 non-ECC UDIMMs, model HMCG78MEBUA081N.

***Please ensure all memory modules are from a single validated kit. Do not combine DIMMs from multiple kits—even if they are the same make and model. Mixing and matching DIMMs can result in failure to boot, and compatibility cannot be guaranteed.

****Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with your retailer to get the correct memory modules.


  • Up to 37.5%
    6600(OC) AEMP II
  • 4800 DDR5 Baseband
background_decoration background_decoration

Storage



Two M.2 Slots (up to 64 Gbps)



The B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.


* Actual transmission speeds will be lower than the theoretical maximum speed.

Supports two M.2 slots

Connectivity

Supports PCIe 4.0 Slot
The B760M-AYW PRO WIFI-CSM motherboard features onboard WIFI 6

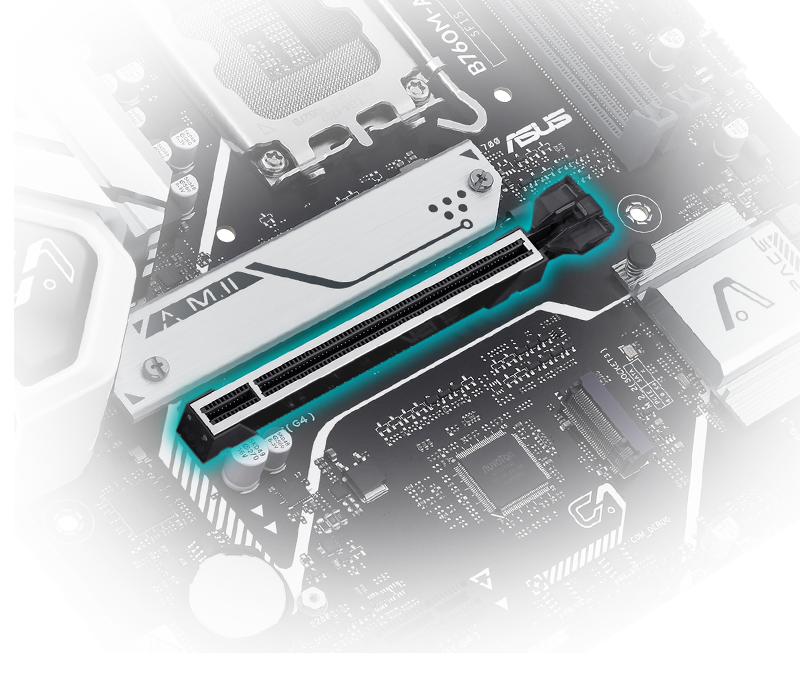

PCIe 4.0 Slot

The B760 motherboard is designed specifically for 14th, 13th and 12th Gen Intel® CPUs and offer PCIe 4.0 connectivity for the latest GPUs.

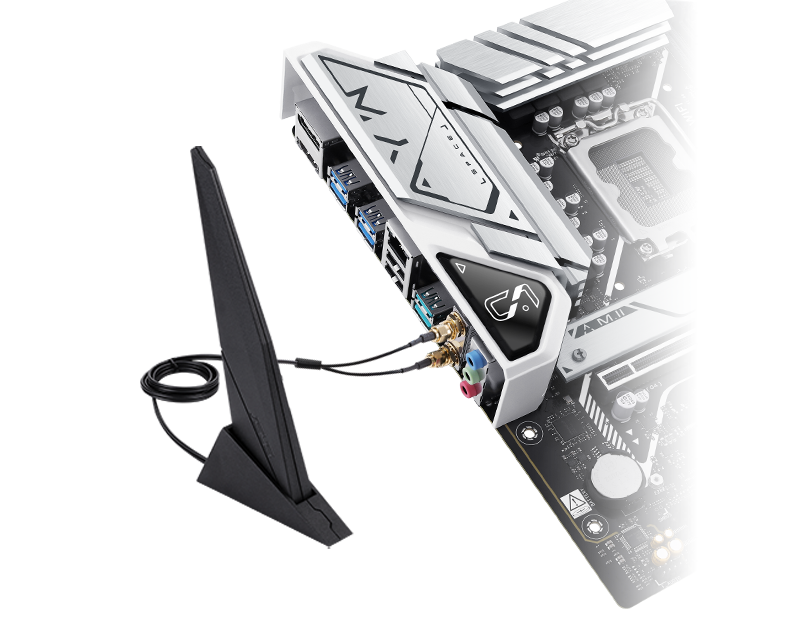

WiFi 6

The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

Learn More

The B760M-AYW PRO WIFI-CSM motherboard features WIFI 6

*Actual speed varies and depends on networking conditions.

Realtek 2.5 Gb Ethernet

Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
Lower CPU workload
High TCP and UDP throughput
Features Realtek 2.5 Gb Ethernet and LanGuard

LANGuard

ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
backgroud decoration

CUSTOMIZATION



B760 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio

Combined onboard features deliver elevated audio


Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding


Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.

Dedicated Audio PCB Layers


Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

Premium Audio Capacitors


Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

Personalization

background_decoration background_decoration

Aura Sync


Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Learn More
static icon

Static

breathing icon

Breathing

strobing icon

Strobing

rainbow icon

Rainbow

color cycle icon

Color Cycle

Starry Night icon

Starry Night

Music Effect icon

Music Effect

Smart icon

Smart

Features Aura Sync
Features addressable Gen 2 headers

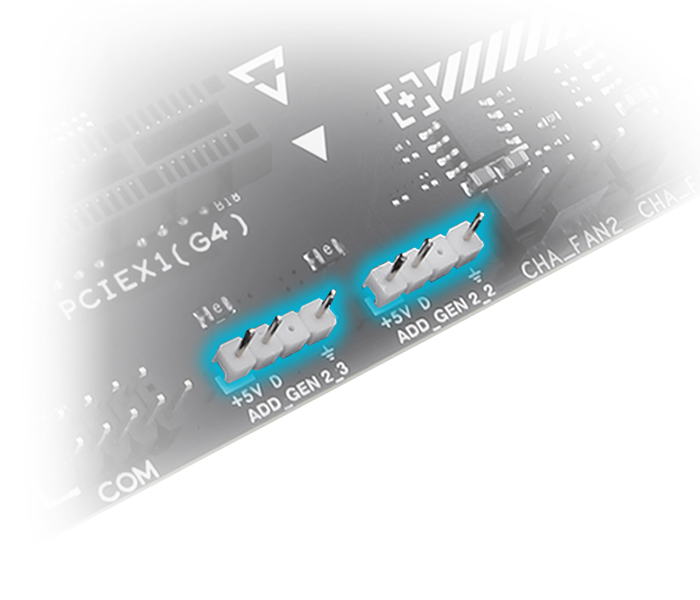

Addressable Gen 2 Headers


Three Addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

RGB decoration line

TWO-WAY AI NOISE CANCELATION


This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls.

500M

Deep-learning database

Audio

Input/output

High

Fidelity

Minimal

Performance Impact
Hear the Difference wave image
AI icon

Hear the Difference

Armoury Crate


Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal , plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.
DOWNLOAD NOW

DIY Friendly

background_decoration

Q-LED Core


The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
No DRAM Detected
Q-LED Core Q-LED Core
Fast blinking

4 Hz (0.25s)

No VGA Detected
q_led q_led2
Slow blinking

1/2 Hz (2s)

No Boot Device Detected
q_led q_led2
Very slow blinking

1/8 Hz (8s)

Installation Completed
q_led q_led2
Solid light

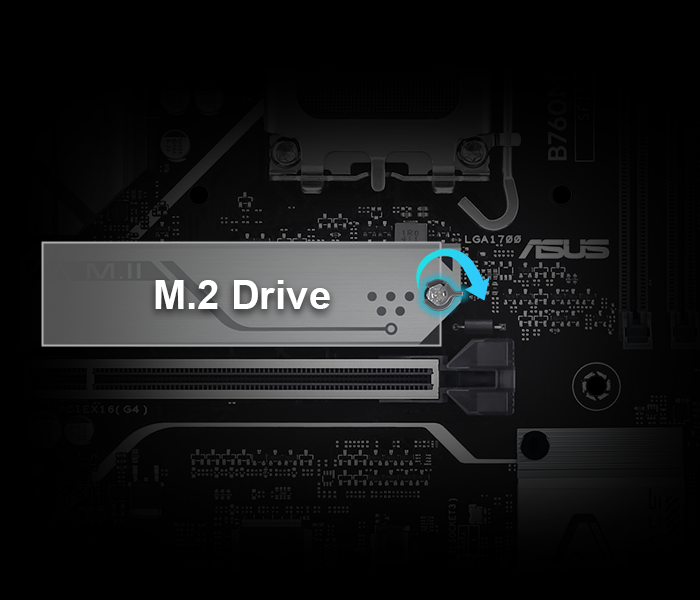

Q-Latch


The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
Features Q-Latch

SafeSlot Core+


SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
Features SafeSlot Core+
Overvoltage Protection
Overvoltage Protection

World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Stainless-Steel Back I/O
Stainless-Steel Back I/O

3X corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
Learn more

1000+
Compatible devices and components


ASUS 700 series provides superior compatibility with thousands of components and our memory support list identifies memory compatibility, giving you more choices for worry-free PC-building experiences.

8000+
Validation hours


Every ASUS motherboard is subjected to more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
Temperature and humidity tests
Temperature and humidity tests
Ensures components withstand extreme conditions.
Thermal measurement tests
Thermal measurement tests
Ensures that the system remains cool and stable under the heaviest loads.
Insertion tests
Insertion tests
Every port and connector is put through repeated installation cycles.
Aging tests
Aging tests
Up to 48-hour aging test ensures reliability.
Power-consumption tests
Power-consumption tests
Checked for world-class energy efficiency.
Temperature and DC margin tests
Temperature and DC margin tests
Ensures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.
Thermal-shock tests
Thermal-shock tests
Ensures ability to survive temperature changes during transportation.
Non-operation shock tests
Non-operation shock tests
Built to withstand jolts that may occur during shipping.
Burn-in tests
Burn-in tests
Every component is checked to ensure flawless operation.
Installation tests
Installation tests
Connector placement is double-checked to ensure hassle-free installation.
Drop tests
Drop tests
Drop tests from various heights ensure durability.
Salt and spray tests
Salt and spray tests
Tested for I/O reliability, prolonged lifespan and rust-resistance.

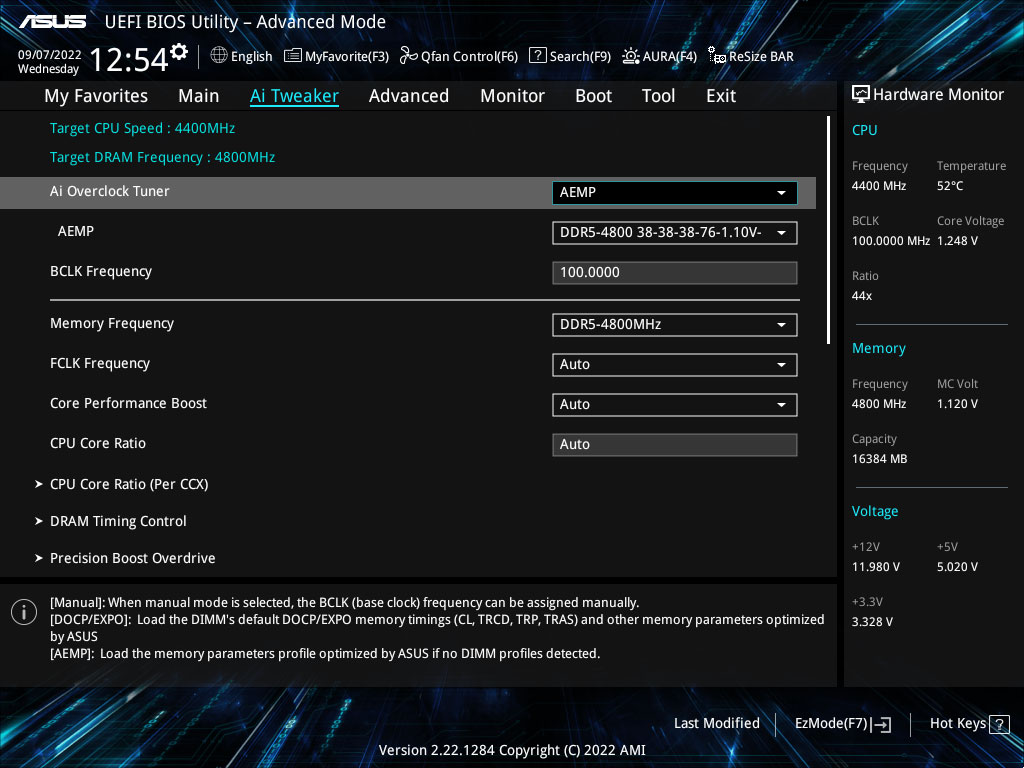

ASUS Enhanced Memory Profile UI setting

Exclusive AEMP


ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
