Name: ProArt B550-CREATOR
Brand: ASUS
SKU: 15609

La tarjeta madre AMD B550 Ryzen AM4 ATX para creadores de contenido cuenta con PCIe® 4.0, dos puertos Thunderbolt™ 4 Type-C, Ethernet Intel® 2.5Gb dual, M.2 dual con disipadores, USB 3.2 Gen 2 y administración de seguridad avanzada

Socket AM4: Listo para Procesadores AMD Ryzen™ Series 5000 / 4000 G / 3000.
Potente E/S: Puertos Thunderbolt 4 tipo C dobles, Ethernet integrado de 2.5G dual, USB 3.2 Gen 2 más HDMI™ 2.1 y DisplayPort™ 1.2.
Rendimiento ilimitado: 12 + 2 fases de poder preparadas para PCI 4.0 con reactancias de aleación de alta calidad y condensadores duraderos.
Seguridad avanzada: Administración de puertos USB, listas negras de software y controles de activación / desactivación de Regedit a través de ASUS Control Center Express.
ProArt te da más: Cancelación de ruido de IA bidireccional para una comunicación en línea clara y ProArt Creator Hub con CreationFirst para un control del sistema integral.
Estabilidad confiable: Probada para un funcionamiento 24 horas al día, 7 días a la semana, validada para una amplia compatibilidad y equipada con SafeSlot para una mayor durabilidad.

Comparar

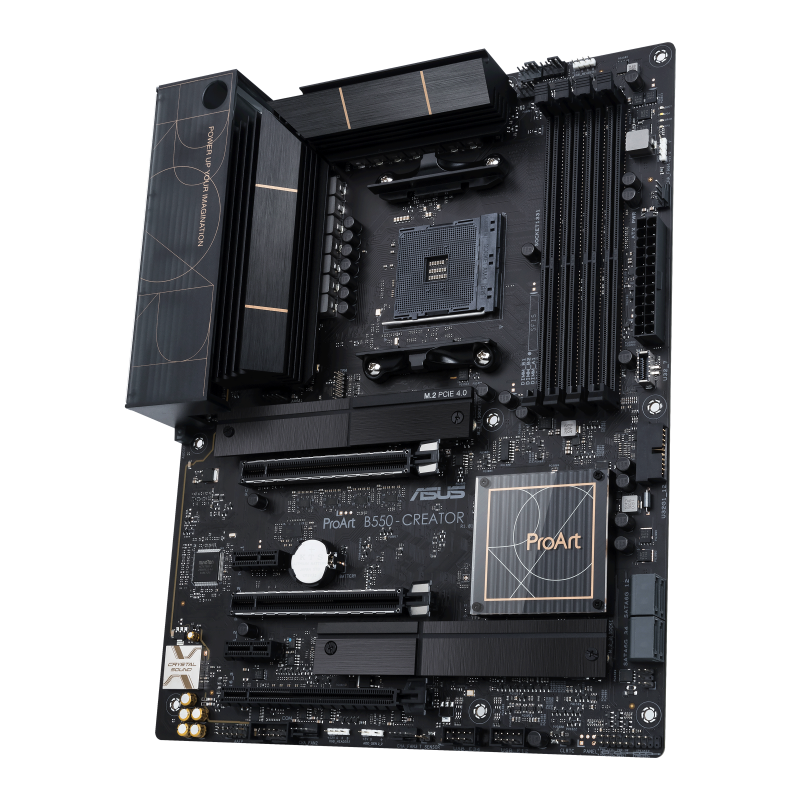

ProArt B550-CREATOR front view, 45 degrees

Premios

n/a

The 2023 Readers’ Choice Award for Best Motherboard Brand goes to…ASUS. Not only has the brand been a favourite of our readers year-on-year, but this year’s results have been their highest in the last decade, surpassing their previous high of 62% in 2020’s Awards.

Can anyone beat ASUS in the PC DIY scene?

ASUS is highly regarded for quality components as well; its motherboards often the choice of enthusiasts, overclockers and gamers for their durability and performance.

With a commanding 62% share of the votes, ASUS is once again the winner of this Readers’ Choice category.

EHA Reader Awards 2024 These are the winners!

Ver todos

Reviews

ASUS ProArt Showcase (Monitors and Motherboards)

I offer him a 4000€ setup !!

Australian PC Awards 2021

AMD Punya Thunderbolt 4?

Experience Buying 60 Million PC To Make Hiphop Beats

Admire the beauty of PC 70 million-nova i4070ti bl #shorts s

Reviews en medios

Thunderbolt 4 support allows you to transfer data at 40 Gbps. Of course, Asus ProArt – Creator offers ample opportunities for overclocking enthusiasts in the form of hardware chips, as well as many settings in BIOS Setup and proprietary utilities.

The ASUS ProArt B550-CREATOR is part of the Creator lineup, and as the same says out loud, it is targeted towards a few segments, mainly for the content creators, editors, professionals, to the certain extend, even those who needs additional ports and functionality with features for all their work, and sometimes play as well.

ProArt B550-Creator 頗為特別，採用 AMD B550 晶片組的它，算是 ProArt 系列第二款主機板成員。此外它更配備 Thunderbolt 4 介面，如果你也在敲碗 AMD 平台製品怎麼都沒有 Thunderbolt，ASUS 應該能滿足你。

Hands on ProArt display - create content everywhere and flexible

Hands on the flexible and portable ProArt display - Best choice for graphic design

Top 5 strong Mainboard Gaming Socket AM5 worth investing in 2023

Ver todos

let your creativity flow

The ProArt B550-Creator motherboard equips creative professionals with powerful hardware and software tools to accelerate their workflows. Featuring comprehensive, efficient cooling and lightning-fast connectivity, this board maximizes the computing power of the latest AMD Ryzen processors to let you create faster and get more done. Combined with a stylish design, advanced security features and the trusted stability and reliability ASUS motherboards are known for, ProArt B550-Creator perfects the art of performance to empower your creative flow.

Spec Overview

Connectivity

Performance

PS/2
2 x USB 2.0
BIOS Flashback™ Button
4 x USB 3.2 Gen2
2 x Intel® I225-V 2.5Gb Ethernet
2 x USB 3.2 Gen2 Type-C®
from Thunderbolt™ 4
1 x DisplayPort IN port for Thunderbolt™ 4
1 x HDMI ™ 2.1 (4K@60Hz)
5 x Audio Jacks
1 x USB 3.2 Gen 1 Type-C®
Front Panel Connector
2 x USB 3.2 Gen 1 Ports
4 x SATA 6Gb/s
4 x USB 2.0
2 x Aura Addressable Gen 2 Headers

2 x Aura RGB Headers

Multi-GPU CFX Support

・2 x PCIe 4.0/3.0 x16 SafeSlots (x16, x8/x8)

・1 x PCIe 3.0 x16 slot (x4)

・2 x PCIe 3.0 x1 slots
Crystal Sound 3
・Realtek® S1220A Codec
・Power Pre-Regulator
・De-Pop Circuit
・Audio Shielding
・Premium Japanese Audio Capacitors
・Dedicated Audio PCB Layers
ProCool II Power Connector
VRM Heatsink
AMD AM4 socket for Ryzen™ 5000
Series/ 4000 G-Series/ 3000
Series Desktop Processors
DDR4, 4 x DIMM (Max. 128GB)
・ASUS OptiMem II
・Dual Channel
2 x M.2 sockets 22110 with Heatsink
・1 x PCIe 4.0/3.0 x4 & SATA modes
・1 x PCIe 3.0 x4 & SATA modes

PS/2
2 x USB 2.0
BIOS Flashback™ Button
4 x USB 3.2 Gen2
2 x Intel® I225-V 2.5Gb Ethernet
2 x USB 3.2 Gen2 Type-C®
from Thunderbolt™ 4
1 x DisplayPort IN port for Thunderbolt™ 4
1 x HDMI ™ 2.1 (4K@60Hz)
5 x Audio Jacks
1 x USB 3.2 Gen 1 Type-C®
Front Panel Connector
2 x USB 3.2 Gen 1 Ports
4 x SATA 6Gb/s
4 x USB 2.0
2 x Aura Addressable Gen 2 Headers

2 x Aura RGB Headers

Multi-GPU CFX Support

・2 x PCIe 4.0/3.0 x16 SafeSlots (x16, x8/x8)

・1 x PCIe 3.0 x16 slot (x4)

・2 x PCIe 3.0 x1 slots
Crystal Sound 3
・Realtek® S1220A Codec
・Power Pre-Regulator
・De-Pop Circuit
・Audio Shielding
・Premium Japanese Audio Capacitors
・Dedicated Audio PCB Layers
ProCool II Power Connector
VRM Heatsink
AMD AM4 socket for Ryzen™ 5000
Series/ 4000 G-Series/ 3000
Series Desktop Processors
DDR4, 4 x DIMM (Max. 128GB)
・ASUS OptiMem II
・Dual Channel
2 x M.2 sockets 22110 with Heatsink
・1 x PCIe 4.0/3.0 x4 & SATA modes
・1 x PCIe 3.0 x4 & SATA modes

Lightning-Speed Connectivity

A comprehensive array of powerful I/O ports — including two Thunderbolt™ 4 ports, two 2.5G Ethernet and four USB 3.2 Gen 2 ports — enables quick data transfers and extensive storage options with flexible, hassle-free connectivity.

Dual Thunderbolt™ 4 Type-C®

Dual 2.5G Ethernet

Each Thunderbolt™ 4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps.

Up to

40Gbps

Supports

Dual 4K or One 8K display

Thunderbolt™ 4

Thunderbolt™ 2

*Theoretical Bandwidth

Up to

40Gb/s*

Up to

20Gb/s*

Experience faster data transfers and high-res video streaming with two Intel 2.5G Ethernet (I225-V) ports. ProArt B550-Creator also features CreationFirst, exclusive network optimization software that allocates more bandwidth to speed up essential apps for your work.

Unthrottled Performance

ProArt B550-Creator provides robust power delivery and comprehensive cooling to handle the latest AMD Ryzen™ processors. It also supports PCIe 4.0, providing everything you need for the most demanding multithreaded tasks like 3D or video rendering and software compiling.

Go Faster with PCIe 4.0

To maximize the potential of the AMD Ryzen 3000 and 5000 Series processors, ProArt B550-Creator features faster PCIe® 4.0 x16 slots for high-powered graphics cards as well as PCIe 4.0 and PCIe 3.0 M.2 sockets to support high-bandwidth NVMe SSD RAID for faster content creation.

PCIe 4.0 M.2 Connector

PCIe 4.0 x16 (x16 or x8/x8)

Robust Power Design

ProArt B550-Creator provides robust power delivery to handle the full power of latest Ryzen processors and
improve overall system stability.

Teamed Power Stages

Digi+ Power Control

ProCool II Power Connector

Choke & Capacitor

6-Layer PCB

12+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest AMD Ryzen processors demand.

The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

The 6-layer PCB quickly dissipates heat around the VRM to improve overall system stability and give the CPU more overclocking headroom.

Cool to the Core

The VRM and M.2 heatsink designs ensure effective cooling of the CPU and SSD to ensure system stability and fast storage performance for seamless content creation workflows.

VRM Heatsink & Thermal Pad

M.2 Heatsink

Stack Cool 3+

Large, high-mass heatsinks with an extensive surface area along with high-quality thermal pads help transfer heat from VRM and choke areas to improve heat dissipation.

Both M.2 drives sit under a passive heatsink to ward off the throttling that can occur with sustained transfers.

Layers of 2-ounce copper draw heat away from critical components to keep them at their optimal operating temperatures.

Industry-Leading Security

Advanced security from ASUS Control Center Express to protect your data and system.

Learn More >

USB Port Management

Enable or disable the USB port or set it to Read Only to prevent data leaks.

Software Blacklist

A software blacklist is also available to prevent running of high-risk applications for IT security.

Registry Editor On/Off

Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations for enhanced security.

ProArt Gives You More

ProArt-exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that smooth your workflow.

Two-Way AI Noise Cancelation

ProArt Creator Hub

CreationFirst

With working-from-home becoming the new normal, clear online communication is critical, even for content creators. Our latest audio utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back so you can hear and be heard with crystal clarity while in calls.

*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.

Hear the difference

AI ON

AI OFF

A user-friendly interface designed to enhance your workflow through central system monitoring and control of all connected ProArt Series products, including motherboards and displays.

1. Fan Mode

Fan mode quickly configures your system's cooling by selecting the preferred fan setting.

2. Task Group

Applications that are frequently used together can be arranged into groups and launched with a single click.

Network-optimization software allows you to prioritize applications in order to allocate more bandwidth to speed up essential apps and tasks.

Download

1. Adaptive Intelligence Mode

Intelligently prioritizes bandwidth of heavy-use applications by identifying in-use applications and using foreground acceleration.

2. Creation First Mode

Allocates more bandwidth to active content-creation applications to optimize network traffic, making your workflow more efficient.

Trusted Stability

ASUS ProArt B550-Creator is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers your creativity for years to come.

24/7

Reliability

168hr

Aging Time

45°C

Temperature

80%

Relative Humidity

Extensive

Compatibility Validation

520+

DDR4 Compatibility

1000+

Compatible Devices

800+

Validation Hours

SafeSlot

Protect your
Graphics Card
