PRIME B650M-F

AMD B650 micro-ATX motherboard, DDR5, PCIe 4.0 support, M.2 slot, Realtek 1Gb Ethernet, HDMI™, USB 5Gbps Type-A, SATA 6 Gbps, BIOS FlashBack™, Two-Way AI Noise Cancelation, Aura Sync
  • AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors
  • Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet and USB 5Gbps support
  • Comprehensive Cooling: PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
  • Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Ready For Advanced AI PC
PRIME B650M-F

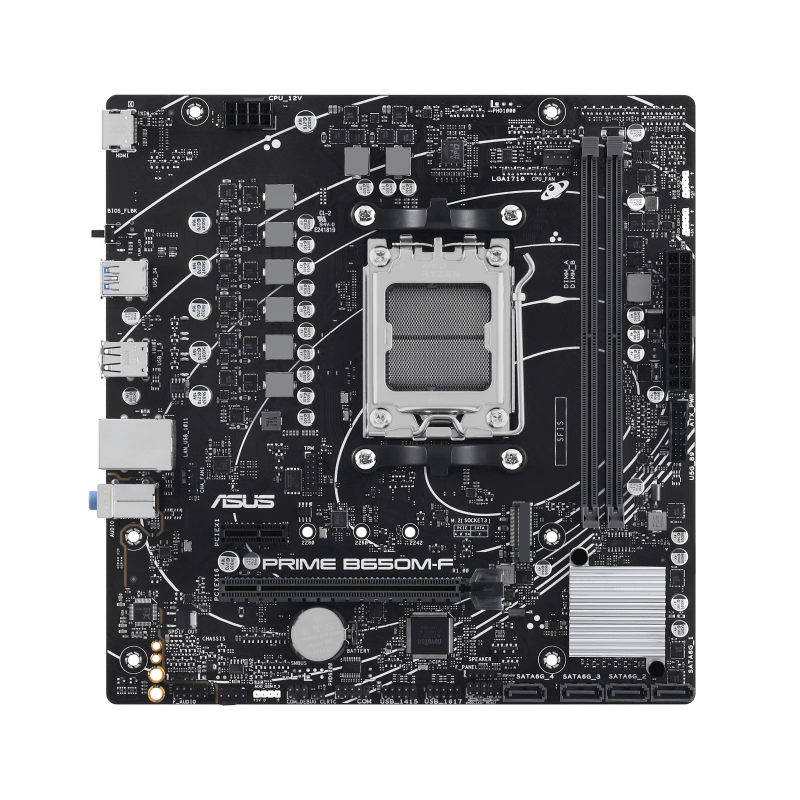

PRIME B650M-F front view
kv_background_light kv_background_light kv_background_dark Prime series motherboard provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

B650M-F



ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series/ 8000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-F provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.


icon-AMD
  • Gen 4 Slot for Storage

    Gen 4 Slot for Storage

  • DDR5 Support

    DDR5 Support

  • 1Gb Ethernet

    1Gb Ethernet

  • Intelligent Control

    Intelligent Control

  • Two-Way Al Noise Cancelation

    Al Noise Cancelation

  • Customization

    Customization

background_decoration background_decoration
All specs of the Prime series motherboar All specs of the Prime series motherboar
  • HDMI™
  • BIOS FlashBack™ button
  • USB 5Gbps
  • USB 2.0
  • 1Gb Ethernet
  • Audio
  • Expansion slots
    • 1 x PCIe 4.0 x16 SafeSlot Core
    • 1 x PCIe 4.0 x1
  • Audio Features
    • Premium audio capacitors
    • Audio Shielding
    • Dedicated audio PCB layers
  • 1 x Addressable Gen 2 header
  • 2 x Addressable Gen 2 headers
  • 2 x DDR5 DIMM slots
  • AM5 Socket for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors
    • Supports up to AMD 120W CPU
  • 1 x Front USB 5Gbps header
  • 1 x M.2 2280 (PCIe 4.0 x4 mode)
  • AMD B650 Chipset
  • 4 x SATA 6Gb/s
  • 2 x Front USB 2.0 headers

FLEXIBILITY



Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
background_decoration background_decoration

Intelligent Control


background_decoration background_decoration
PBO Enhancement UI setting. UI of Power Saving settings UI of FAN Xpert 2+ for cooling controls Digi+ VRM feature icon

CPU Performance Boost

AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Flexible Cooling Controls

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS



The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
background_decoration

Advanced Tuning for Serious Tweakers



An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search Function


Quickly and easily find the option or setting you need.

ASUS User Profile


Port configuration settings between different BIOS versions or share them with friends.

Quick and Simple Setup



EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Intuitive Graphical Fan Control


Fine-tune individual fan settings simply by dragging a curve with the mouse.

Aura On/Off Mode (Stealth)


Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

COOLING


PRIME B650M-F is engineered with an array of hybrid fan headers and two ounce copper PCB design to ensure your rig stays cool and stable under intense workloads.

Cooler by Design



Prime B650 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Prime motherboard Prime motherboard with multiple temperature sources image Prime motherboard with smart protection image Prime motherboard with 4-Pin PWM/DC Fan image

Multiple Temperature Sources



Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Smart Protection



A dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-Pin PWM/DC Fan



Each onboard header supports auto-detection of PWM or DC fans.

Stack Cool 3+



2oz copper PCB design can draw heat away from critical components to keep the optimal operating temperatures.
features 2Oz copper PCB design.

PERFORMANCE



The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Memory

Prime series motherboar supports DDR5.

DDR5 Performance Enhancement


Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650M-F, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

For entry-level modules without EXPO™ memory support, we’ve got you covered. Click here to learn more about AEMP. arrow .

For those who want to fly past stock DDR5 speeds, the PRIME B650M-F is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
background_decoration background_decoration

Storage



PCIe 4.0 M.2 Support



PRIME B650M-F offers one M.2 slot that supports data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.


* Actual transmission speeds will be lower than the theoretical maximum speed.

supports PCIe 5.0 M.2 Support.

Connectivity

supports PCIe® 4.0 Slot.
features Rear and Front USB 5Gbps Port.

PCIe 4.0 Slot

Prime B650 motherboards offer PCIe 4.0 slot connectivity for the GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

Rear and Front USB 5Gbps

Numerous USB ports support high-end rigs loaded with peripherals, including two rear USB ports with fast USB 5Gbps connectivity and a front USB 5Gbps connector for compatible cases.

Realtek 1Gb Ethernet

Realtek 1Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
Lower CPU workload
High TCP and UDP throughput
features ASUS LANGuard.

LANGuard

ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
backgroud decoration

CUSTOMIZATION



The PRIME B650 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio

Combined onboard features deliver elevated audio


Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding


Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.

Dedicated Audio PCB Layers


Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

Premium Audio Capacitors


Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

Personalization

background_decoration background_decoration

Aura Sync


Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Learn More
static icon

Static

breathing icon

Breathing

strobing icon

Strobing

rainbow icon

Rainbow

cycle icon

Color Cycle

starry icon

Starry Night

Music Effect icon

Music Effect

Smart icon

Smart

features Aura Sync.
features addressable Gen 2 headers.

Addressable Gen 2 Headers


The addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

RGB decoration line

TWO-WAY AI NOISE CANCELATION


This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls.

500M

Deep-learning database

Audio

Input/output

High

Fidelity

Minimal

Performance Impact
Hear the Difference wave image
AI icon

Hear the Difference

Armoury Crate


Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal, plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.
DOWNLOAD NOW

DIY Friendly

background_decoration

Q-LED Core


The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
No CPU Detected
This motherboard motherboard features Q-LED Core. This motherboard motherboard features Q-LED Core.
Fast blinking

4 Hz (0.25s)

No VGA Detected
q_led q_led2
Slow blinking

1/2 Hz (2s)

No Boot Device Detected
q_led q_led2
Very slow blinking

1/8 Hz (8s)

Installation Completed
q_led q_led2
Solid light
This motherboard features BIOS FlashBack™.

BIOS FlashBack™


BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without a memory or a CPU installed.

SafeSlot Core


SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots.
Features SafeSlot Core
Overvoltage Protection
Overvoltage Protection

World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Stainless-Steel Back I/O
Stainless-Steel Back I/O

3X corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
Learn more

1000+
Compatible devices and components


The Prime B650 series provides superior compatibility with thousands of components and our memory support list identifies memory compatibility, giving you more choices for worry-free PC-building experiences.

8000+
Validation hours


Every ASUS motherboard is subjected to more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
Temperature and humidity tests
Temperature and humidity tests
Ensures components withstand extreme conditions.
Thermal measurement tests
Thermal measurement tests
Ensures that the system remains cool and stable under the heaviest loads.
Insertion tests
Insertion tests
Every port and connector is put through repeated installation cycles.
Aging tests
Aging tests
Up to 48-hour aging test ensures reliability.
Power-consumption tests
Power-consumption tests
Checked for world-class energy efficiency.
Temperature and DC margin tests
Temperature and DC margin tests
Ensures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.
Thermal-shock tests
Thermal-shock tests
Ensures ability to survive temperature changes during transportation.
Non-operation shock tests
Non-operation shock tests
Built to withstand jolts that may occur during shipping.
Burn-in tests
Burn-in tests
Every component is checked to ensure flawless operation.
Installation tests
Installation tests
Connector placement is double-checked to ensure hassle-free installation.
Drop tests
Drop tests
Drop tests from various heights ensure durability.
Salt and spray tests
Salt and spray tests
Tested for I/O reliability, prolonged lifespan and rust-resistance.
Ryzen 7000 Series Ryzen 7000 Series

THIS CHANGES EVERYTHING.

FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE

Build your next rig with an AMD Ryzen™ 7000 Series processor and PRIME B650M-F to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1

You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2

  1. Max boost for AMD Ryzen processors is the maximum frequency achievable by a single core on the processor running a bursty single-threaded workload. Max boost will vary based on several factors, including, but not limited to: thermal paste; system cooling; motherboard design and BIOS; the latest AMD chipset driver; and the latest OS updates. GD-150
  2. Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by the system manufacturer or retailer. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability. GD-106
ASUS Enhanced Memory Profile UI setting

Exclusive AEMP


ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
